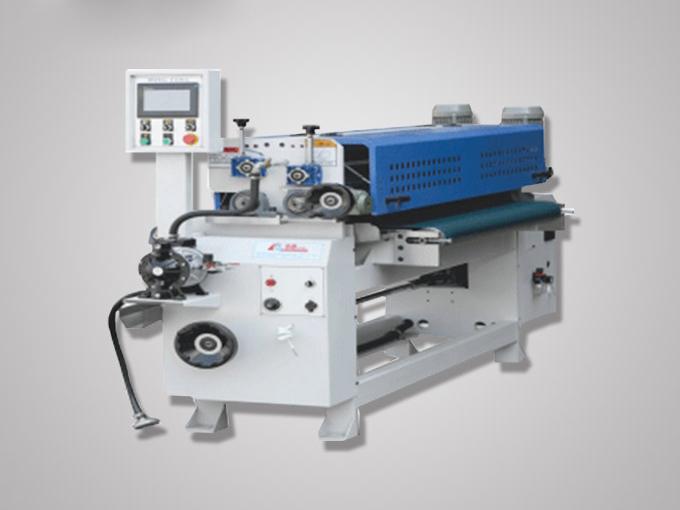

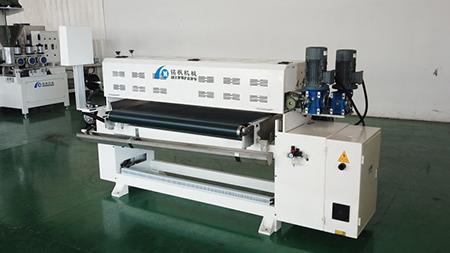

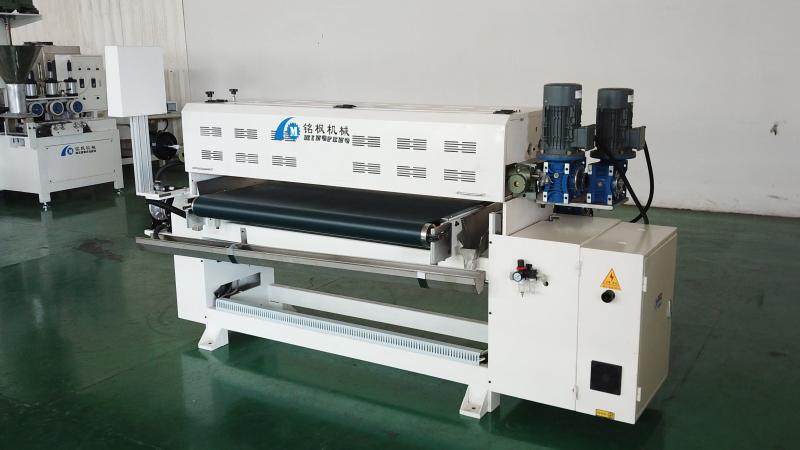

Single-Roll Coating Machine

Single-Roll Coating Machine
Function
  • The single-roll coating machine is able to transfer the coating fluid from the applicator roll onto the surface of the substrate through their contacting. This coating equipment features one single applicator roll and thus has a relatively lower coating weight of 5-20g/m2. Compared to manual coating, the coating film is smoother and more uniform.
  • If you require a thinner coating thickness, this single-roll coating machine is your perfect choice whose simple structure will help you save more production costs.
Application

The single-roll coater is ideal for the coating of wood, synthetic board, plastic, glass and metal materials.

Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 4.5KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Coating wheel dimension ¢205×1450 mm
Electro-optical wheel dimension ¢150×1450 mm
Dimension 1000mm×2700mm×1700mm
Gallery
  • Single-Roll Coating Machine
  • Single-Roll Coating Machine
  • Single-Roll Coating Machine
  • Single-Roll Coating Machine
