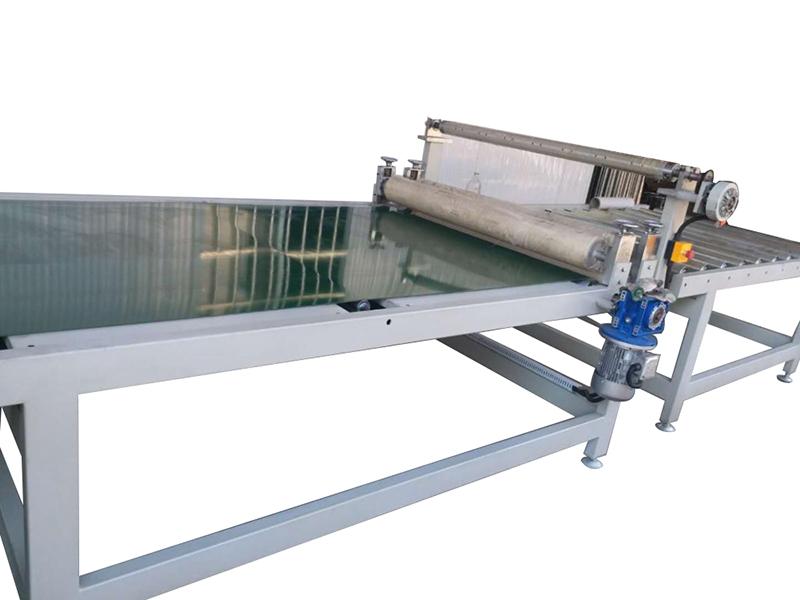

Laminating Machine

Laminating Machine
Function
  • During transport and movement, the collisions will easily damage the product and affect its appearance and quality. To solve this problem, a protective film is often pressed to the surface of the finished product by a laminating machine.
  • The laminating machine consists of three parts: automatic film lamination device, automatic film cutting device and automatic film feeding device. XMF can help customers to choose a suitable film according to the size of your product. The built-in IR induction system of the laminating equipment can precisely cut the film after lamination to ensure the lamination completeness.
Application

XMF laminating machine is appropriate for various flat substrates, such as wood, synthetic board, plastic, glass and etc.

Features
  • The up and down pinch roller in combination with the air-operated lifting mechanism make sure the film firmly and smoothly sticks to the surface of product.
  • A set of magnetic powder tensioner improves lamination quality and eliminates the bubbles.
  • 3mm PVC flat conveyor belt is high-temperature and corrosion resistant and features long working life.
Parameter
Voltage AC 380V three phase
Frequency 50HZ
Working width 0-1320mm
Minimum working length 300mm
Feeding speed 0-20m/min
Feeding power 1.5KW
Dimension 5000mm×1800mm×1300mm
