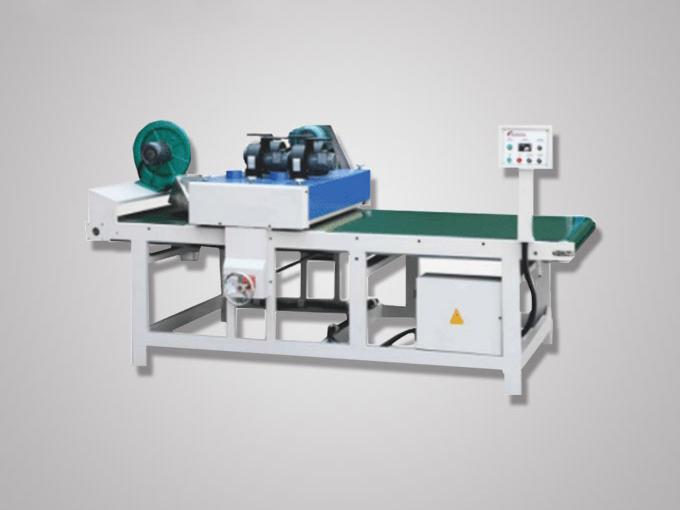

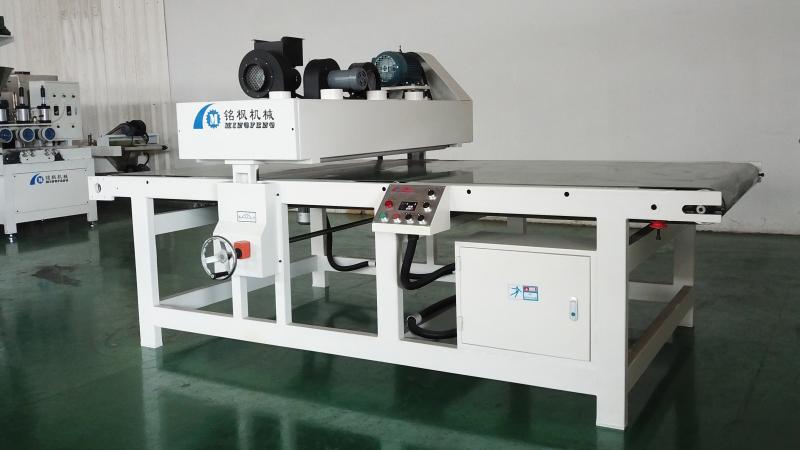

Brush Cleaning Machine

Brush Cleaning Machine
Function
  • Rust removal is the first process before coating because a clean surface can achieve better finish performance. The brush cleaning machine can remove and clean the dust and particles remained on the surface after sanding to improve the subsequent coating quality.

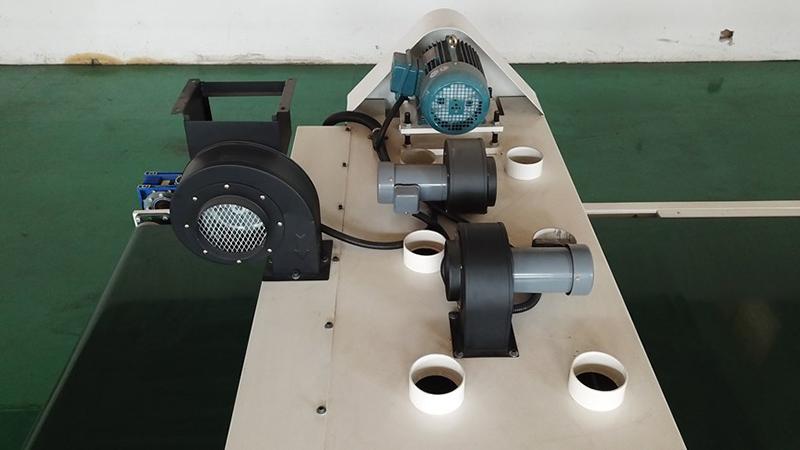

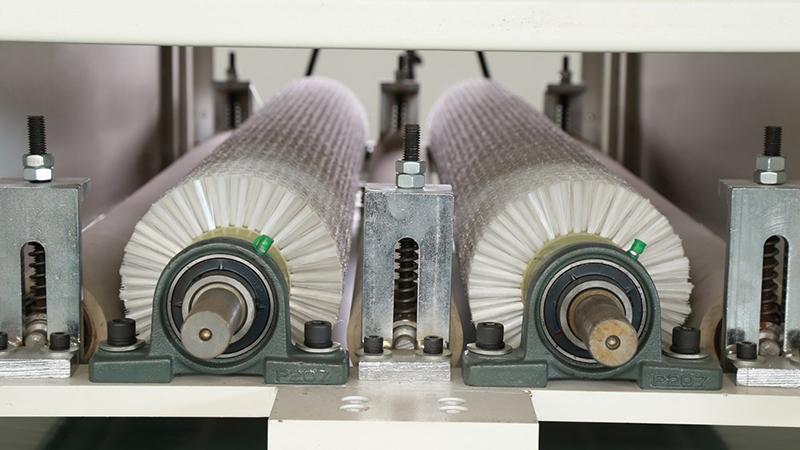

  • This brush cleaning equipment has two groups of dust-removal brushes to sweep out the dust and particles and the three fans on the top of the dedust box will exhaust the dust.
  • The brush cleaning machine is suitable to applications with dust-removal requirements. XMF can provide custom dust removal solutions according to the size of your product.
Application

The brush cleaning machine is appropriate for surface dust-removal of various wood or synthetic board products.

Features
  • Large power dust exhaust fan can effectively collect and clean the dust and make sure the surface of the substrate clean.
  • Brushes are easy to mount and dismount.
  • Four small fans are installed inside to blow away the dust inside the brushes.
  • Cast iron lifting frame with good stability.
  • 3mm PVC conveyor belt is high temperature resistant and corrosion resistant, which features longer operational life.
Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 6KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Bristle brush wheel dimension ¢150×1320 mm
Pinch roller dimension ¢60×1320 mm
Transmission wheel dimension ¢130×1330 mm
Dimension 3000mm×2037mm×1500mm
Gallery
  • Brush Cleaning Machine
  • Brush Cleaning Machine
  • Brush Cleaning Machine
  • Brush Cleaning Machine
