Wide Belt Sander

Function
  • As the burrs and chips on the wood surface highly affect the subsequent coating performance, a wide belt sander is needed to sand the wood in prior to coating. Besides, if the surface of the substrate after coated is still unsmooth, the wide belt sander can also be used.
  • Through the abrasion between the uniformly rotary sanding belt and the substrate surface, the sanding machine will make the coating film or the surface of the substrate smoother.
Application

The wide belt sander is suitable for the buffing and scuffing of the wood, synthetic board or other flat board materials. The sanded flat or profiled substrates will be smoother and thus increase the coating efficiency.

Features
  • The height of the sander frame can be adjusted according to the width of substrate to obtain a better sanding quality.
  • Air-operated lifting system for easy sanding belt replacement.
  • Automatic dust exhaust system can automatically clean the dust generated during sanding process to guaranteeing a good coating performance.
Optional models

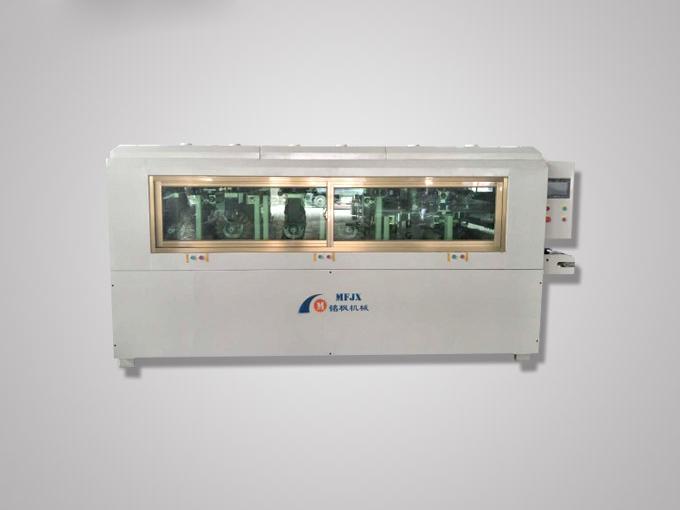

Profile sander
Wide Belt Sander

The profile sander features multi-axis profiled sanding wheels to scuff and buff the profiled engraved substrates such as solid wood door, cupboard door, sliding door and etc.

Features
  • 18mm-thick steel frame increases the stability and durability of the profile sanding machine.
  • Every sanding roll has an independent lifting frame to achieve the best sanding quality.
  • Electronic-control lifting device maintains high precision even after long-time work.
  • The mechanical drive system consists of large power motor and large torsion reduction gear. Every sanding roll has an independent motor variable frequency control and swinging functions for multi-side sanding.
  • 5mm PVC conveyor belt features high strength, wear resistance and skid resistance, which ensures the material transport smoothness.
  • The sanding wheel consists of disc sand paper, horizontal sand paper and obverse and reverse sanding wheels, which provides a more complete sanding performance.
Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 15KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-15m/min
Dimension 3000mm×1800mm×1700mm

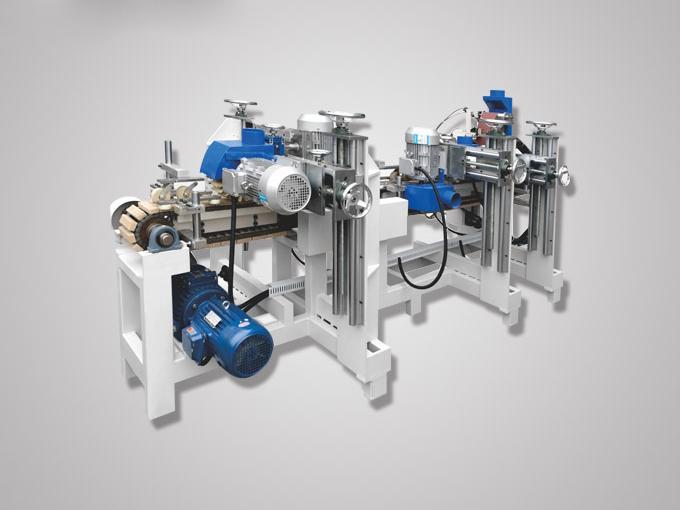

Profile linear sanding machine
Wide Belt Sander

The profile linear sanding machine is designed for scuffing and polishing raw, painted or coated linear wood, such as skirting board, door jamb and window casing.

Features
  • Suitable for buffing and scuffing various profile linear materials.
  • The sanding height and angle of the sanding head can be adjusted according to the dimensions of substrates.
  • The sanding head adopts double slide rail for lifting, guaranteeing the lifting precision and stability.
  • The wide belt sander utilizes air-operated hold-down rolls for easy and quick operation.
  • The mechanical drive system consists of large power motor and large torsion reduction gear. Every sanding head has an independent motor variable frequency control and auto compensation functions, no need of manual adjustment.
  • 5mm PVC conveyor belt features high strength, high wear resistance and skid resistance, which ensures the material transport smoothness.
  • The sanding wheel consists of fiber wheel, flap wheel, triangle sanding pad and flat sanding belt, providing a more thorough sanding effect.
Parameter
Voltage ACthree-phase four-wire380V
Frequency 50HZ
Total power 23KW
Working width 0-120mm
Working thickness 2-50mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 5000mm×1800mm×1700mm
