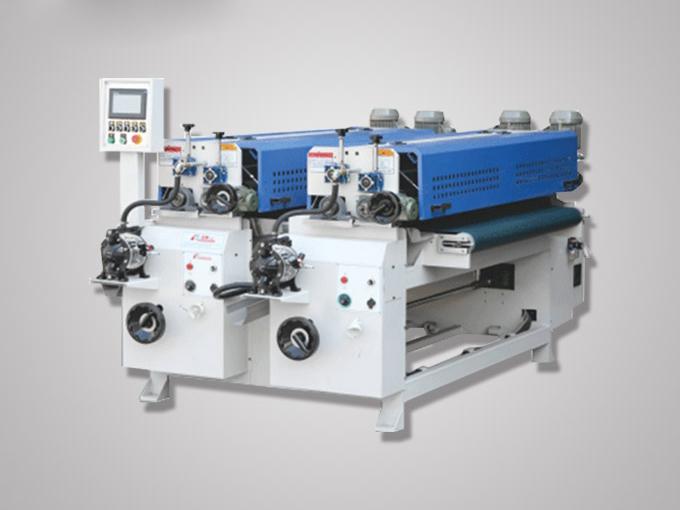

Double head Roller Coater

Double head Roller Coater
Function
  • XMF double head roller coater has two applicator rolls and a coating weight of 20-40g/㎡ as double as that of the single-roll coating machine. Therefore, the coating film is thicker and smoother.
  • This series of roller coaters are suitable for applications which need thicker coating film, which can protect the coating film from being worn and scratched in the subsequent sanding process.
  • The double roll coating machine can reduce the rework rate, improve the production efficiency and increase the utilization of coating paint to save production cost. The coating film is far more uniform and smoother than the manual work.
Application

The double head roller coater is ideal for the coating of wood, synthetic board, plastic, glass and metal materials.

Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 10KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Coating wheel dimension ¢205×1450 mm
Electro-optical wheel dimension ¢150×1450 mm
Dimension 2000mm×2700mm×1700mm
Gallery
  • Double head Roller Coater
  • Double head Roller Coater
  • Double head Roller Coater
Tags
Roll Coaters Roll Coating System Roll to Roll Web Coating Equipment
Other Products

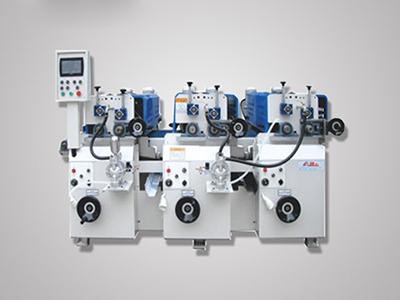

    1. Multiple Roller Coater
    2. Multiple Roller Coater

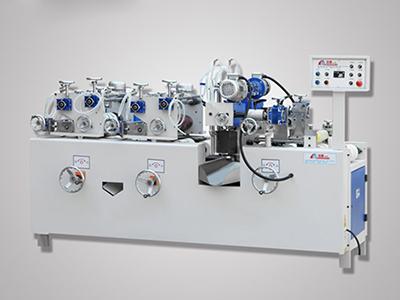

    1. Edge Roller Coating Machine
    2. Edge Roller Coating Machine

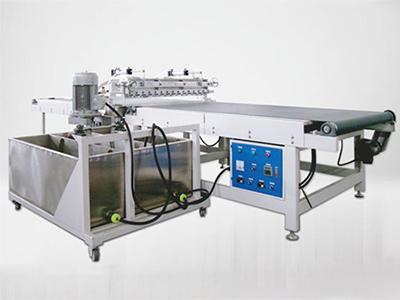

    1. Curtain Coating
    2. Curtain Coating

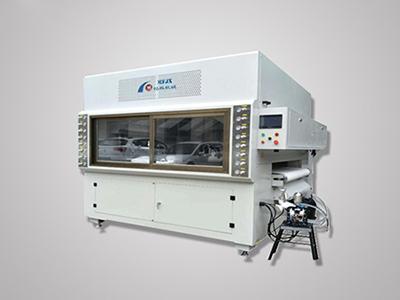

    1. Reciprocator Spray Coater
