Wood Grain Printing

Function
  • The wood grain printing machine can print a decorative wood grain pattern onto the substrate. The wood grain printer can bring customers more profits.
  • XMF offers single color wood grain printing machine, three color wood grain printer and three side wood grain printing system. A customization service is also provided according to the pattern, substrate size and style you need. Up to 4 print color and 4 print sides can be set. Various pattern rolls can also be customized by XMF.
Application

The wood grain printing machine is suitable for the flat printing or multi-surface printing of the irregular-shaped materials. The compatible materials include wood, synthetic board, plastic and etc.

Features
  • The wood grain printing machine is controlled by servo motor to create uniform printing effect and vivid wood grain pattern.
  • 12 mm-thick heavy duty welded steel frame reduces the vibration during operation, enhances the machine stability and assures the clear printing effect.
  • 3MM PVC anti-corrosion and antiskid conveyor belt provides longer service life.
  • The applicator roll is the special roll for PU which provides clearer printing performance.
  • Every wood grain printing equipment is configured with a paint recycling system which can 100% recycle and reuse the coating fluid to highly save production cost.
Working principle

The engraved pattern roll is applied with coating fluid. After the coating fluid permeating the pattern roll, the doctor blade will wipe off the remaining fluid on the surface of pattern roll. When the pattern roll contacting the applicator roll, the pattern will be transferred to the surface of the applicator roll. Eventually the pattern will be printed to the surface of the substrate through contact between applicator roll and substrate.

Available models

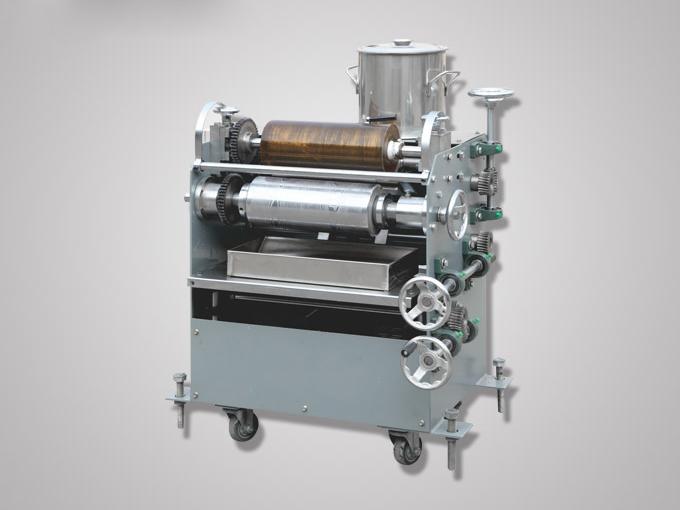

Single-color printing machine
Wood Grain Printing

Economical, single color print available.

Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 1.5KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 1500mm×2500mm×1700mm

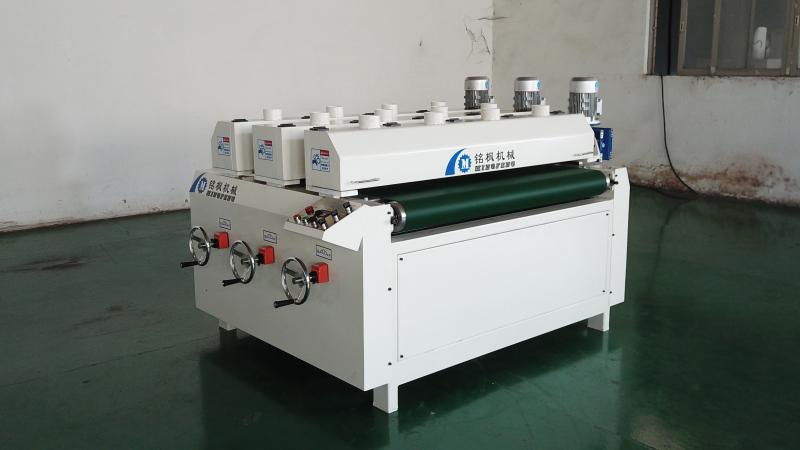

Three color wood grain printing machine
Wood Grain Printing

Three color print available
Layering, stereo, vivid and delicate pattern.

Parameter
Voltage AC three-phase four-wire380V
Frequency 50HZ
Total power 35KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 6000mm×2800mm×1700mm

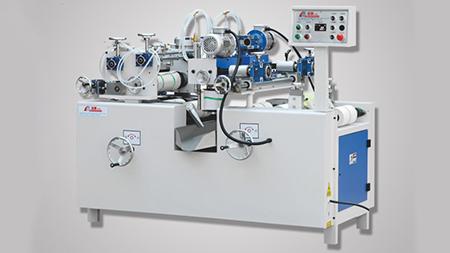

Three side wood grain printer
Wood Grain Printing

Available in simultaneous three side print
Higher printing efficiency
Ideal for products with multi-surface pattern printing requirements

Parameter
Voltage AC three-phase four-wire380V
Frequency 50HZ
Total power 3KW
Working width 0-240mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 8000mm×2000mm×1500mm
