Embossing

Embossing
Function
  • The embossing machine is designed to emboss a stereo and delicate wood grain pattern on the substrate.
  • XMF can provide single side embossing machine and multi-side embossing machine. A customized embossing machine is available according to the width of your substrate. If you need to emboss different patterns, you only need to replace the pattern roller which can be also customized in XMF.
Application

The embossing machine is appropriate for the flat substrate embossing or multi-side embossing of wood, synthetic board and other materials.

Features
  • The embossing machine is equipped with an IR digital read-out controller. In order to emboss an ideal pattern, the temperature of the pattern roller can be manually adjusted according to the substrate material and pattern characteristics.
  • An automatic constant temperature control device is configured to keep the pattern roller maintaining a set temperature while running, which allows to obtain a consistent pattern and save the cost of power consumption.
  • 50mm-thick heavy duty welded steel lifting frame of the embossing equipment ensures the running stability of the embossing roller and clear embossing effects.
  • 40mm-thick seamless steel tube is adopted to make the embossing roller, which features higher stability and longer service life.
Working principle

The pattern which customer needs are engraved on the pattern roller. After adjusting the distance between the pattern roller and the substrate, due to the large pressure of the pattern roller, it will emboss a stereo grain on the substrate. A built-in heating device can heat the pattern roller to 400 ℃ and the heated embossing pattern is more fixed and unchangeable.

Available models

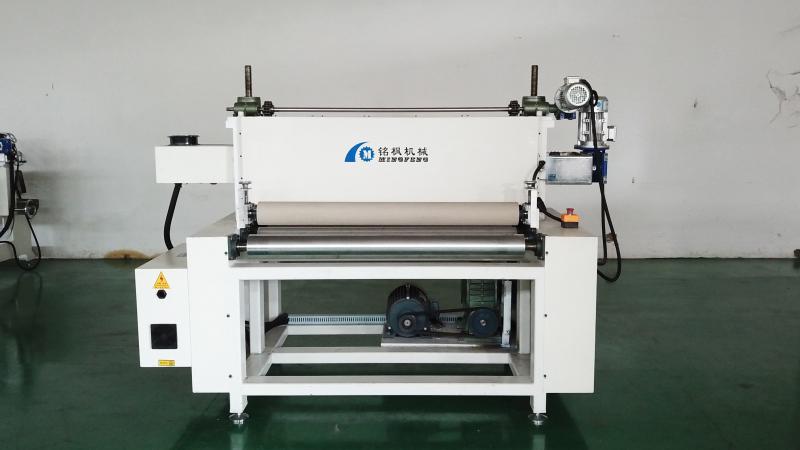

Three color wood grain printing machine
Embossing
Contact Us

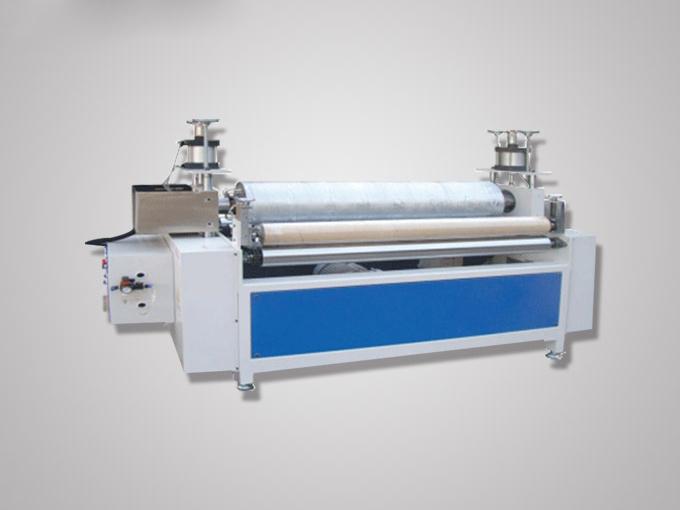

Available in one single side embossing at a time.

Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 18KW
Working width 0-1320mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 1200mm×2200mm×1500mm

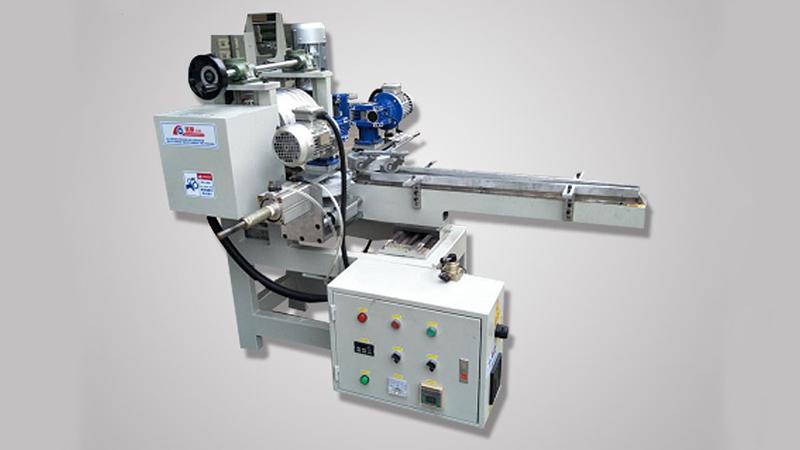

Multi-side embossing machine
Embossing
Contact Us

Available in multi-side embossing at a time. Up to four side.

Parameter
Voltage AC three-phase four-wire380V
Frequency 50HZ
Total power 18KW
Working width 0-120mm
Working thickness 2-80mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 1200mm×2200mm×1500mm
