Roller Conveyor and Belt Conveyor

Function
  • The conveyor is used to transport workpieces, connect multiple machines and form a production line. It’s also convenient for operators to check the coating performance in real time.
  • XMF provide two types of conveyors: belt conveyor and roller conveyor. The belt conveyor with strong stability is more suitable for small-sized workpieces; The roller conveyor with high loading capacity is ideal for large-sized heavy duty products.
  • A custom conveyor is available in XMF according to the width of the product needs to be transported.
Application

The conveyor is used to transport workpieces and connect the production line of all coating equipment to form a complete coating process.

Features
  • The height of the sander frame can be adjusted according to the width of substrate to obtain a better sanding quality.
  • Air-operated lifting system for easy sanding belt replacement.
  • Automatic dust exhaust system can automatically clean the dust generated during sanding process to guaranteeing a good coating performance.
Optional models

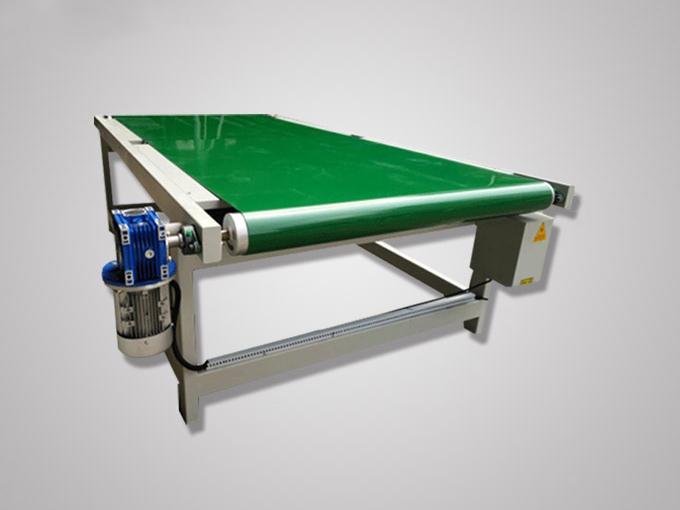

Belt conveyor
Conveyor
Contact Us

Features

  • 3mm thick PVC belt conveyor is antiskid and durable.
  • The belt conveyor can automatically adjust the transport speed.
  • Simple structure for easy maintenance and fast component replacement to shorten the downtime.
Parameter
Voltage AC 380V three-phase four-wire
Frequency 50HZ
Total power 1KW
Working width 0-1320mm
Minimum working length 300mm
Feeding speed 0-20m/min
Feeding power 1KW
Dimension 3000mm×1600mm×850mm

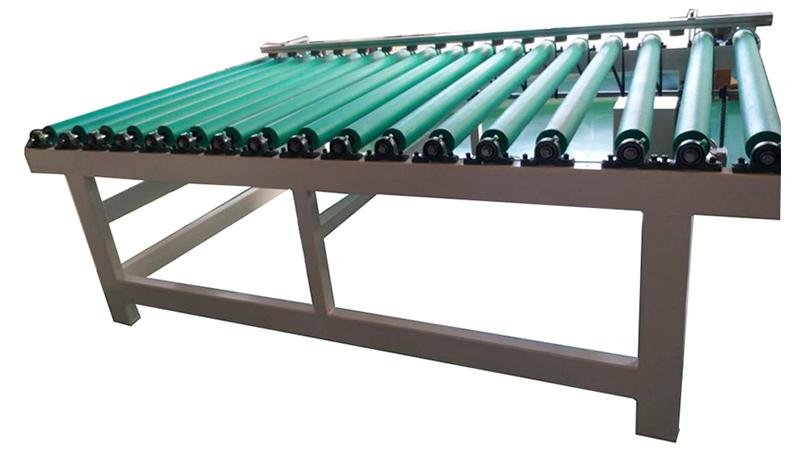

Roller conveyor
Conveyor
Contact Us
Features

The stainless steel rollers are adopted to convey workpieces.

Parameter
Voltage AC three-phase four-wire380V
Frequency 50HZ
Working width 0-1320mm
Minimum working length 300mm
Feeding speed 0-20m/min
Dimension 3000mm×1600mm×850mm
